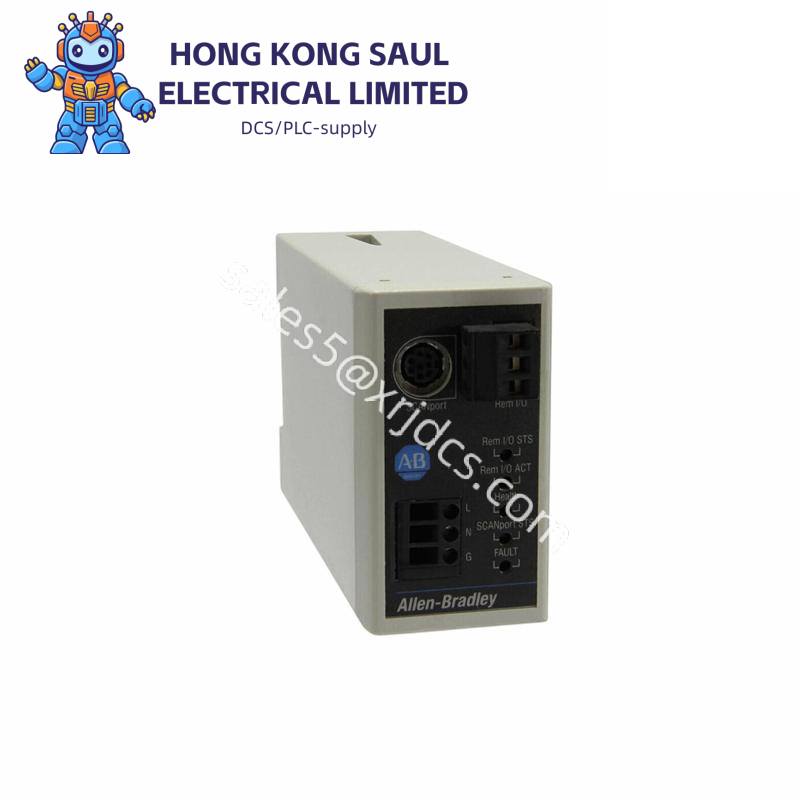

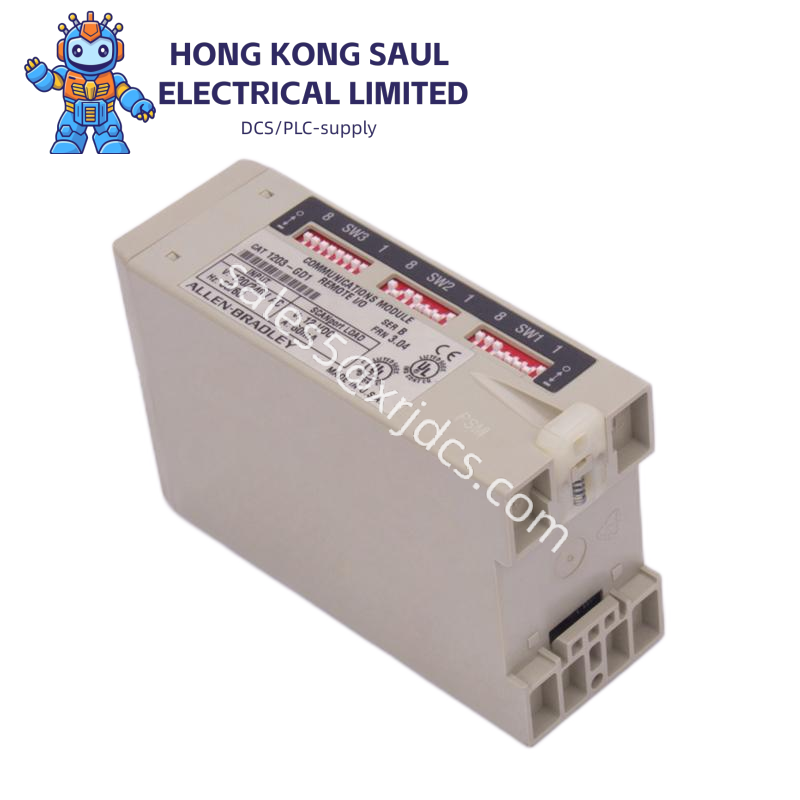

Rockwell AB 1203-GD1 Control Module, High Performance Industrial Automation Component

Rockwell AB 1203-GD1 Control Module, High Performance Industrial Automation Component

    The Rockwell Automation AB 1203-GD1 Control Module is designed for industrial automation applications. It offers precise control and monitoring capabilities, ideal for manufacturing environments requiring reliable performance. This module seamlessly integrates with Rockwell’s integrated architecture, providing a robust solution for system upgrades and expansions.

Manufacturer:Rockwell Automation

Model Number:1203-GD1

Control Type:Digital

Input Voltage Range:10-30V DC

Output Current:Up to 1A per channel

Operating Temperature:-25°C to +70°C

Protection Rating:IP67

Communication Protocol:Modbus RTU/TCP, EtherNet/IP

Channels:8 digital input/output channels

Dimensions:85mm x 50mm x 25mm (L x W x H)

Weight:Approximately 0.2kg

    The Rockwell Automation AB 1203-GD1 Control Module offers high precision data acquisition and control capabilities. This module supports a wide range of input and output signals, making it suitable for a variety of applications including process automation, manufacturing, and industrial control systems. The design incorporates advanced filtering technology for enhanced signal integrity and reliability. Each channel on the module can independently select from six hardware analog-to-digital filter frequencies, ensuring accurate and fast channel acquisition. The module also includes error checking mechanisms and alarm detection for high, high-high, low, and low-low thresholds, ensuring operational safety and efficiency. Users can configure software filters for each input channel, providing flexibility in setup and maintenance. Additionally, the module supports user-defined range calibration and temperature display in both Celsius and Fahrenheit, enhancing usability. The module comes equipped with fault reporting and diagnostic capabilities, supporting the identification of issues within logic programs and facilitating quick troubleshooting. With its robust design and versatile features, the Rockwell Automation AB 1203-GD1 Control Module is a reliable choice for modern industrial automation needs.
