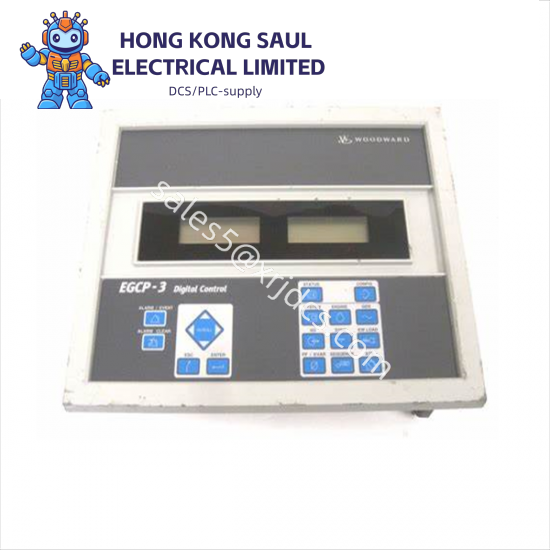

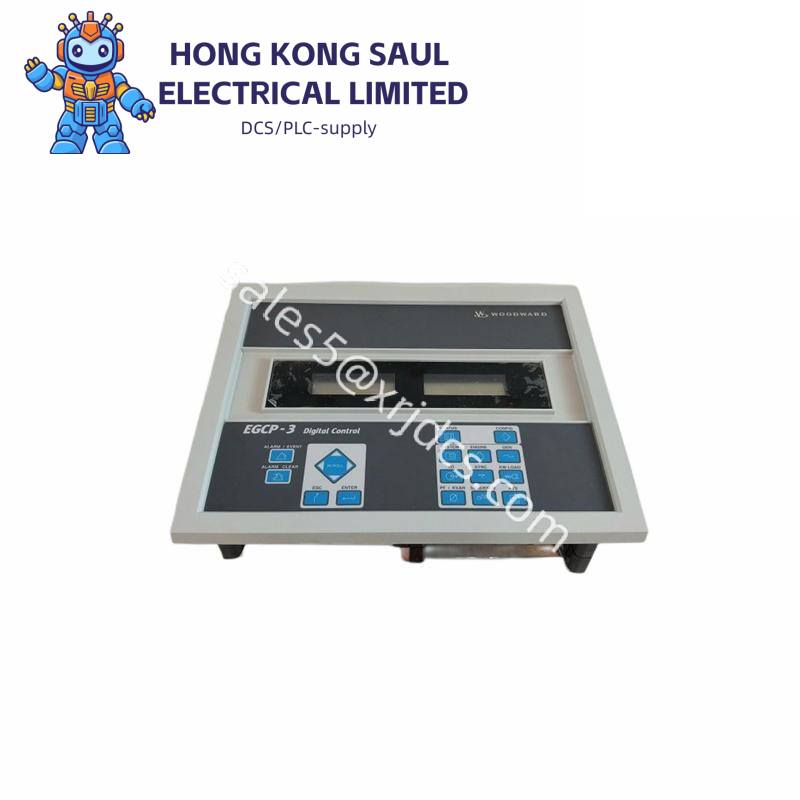

WOODWARD EGCP-3 8406-113 Microprocessor-Based Engine Generator Control Module
The Woodward EGCP-3 8406-113 is a microprocessor-based engine generator control module designed for efficient operation in power generation applications. It facilitates seamless communication with other EGCP-3 modules for coordinating generator set operations and managing utility mains paralleling.
Dimensions:282H x 359W x 135D mm
Features:Speed Bias: 4–20 mA, 0–5 V, PWM, or ±3 V output
Input Voltage:18-32 V dc
Manufacturer:Woodward
Operating Temperature:–20 to +70 °C
Storage Temperature:–30 to +80 °C
Weight:4.3 kg (9.5 pounds)
Slot Type:3 Serial Ports
Standards:NEMA 4 when properly installed
The Woodward 8406-113 is specifically tailored for the Woodward EGCP-3 Engine Generator Control Package, Load Sharing (LS) model series. This advanced control module utilizes a robust microprocessor to enhance operational efficiency and accuracy.
Designed for use in Class I, Division 2, Groups A, B, C, and D per UL standards for Canada and US, or non-hazardous locations only, this module ensures compliance with stringent safety regulations.
Equipped with three serial ports, the 8406-113 facilitates efficient data communication between devices, ensuring smooth operation and management of generator sets.
The module supports multiple output options including 4–20 mA, 0–5 V, PWM, or ±3 V, providing flexibility and compatibility with various industrial applications.
With an operating temperature range from –20 to +70 °C and storage temperature range from –30 to +80 °C, the 8406-113 is built to withstand harsh environmental conditions, ensuring reliable performance across diverse applications.
