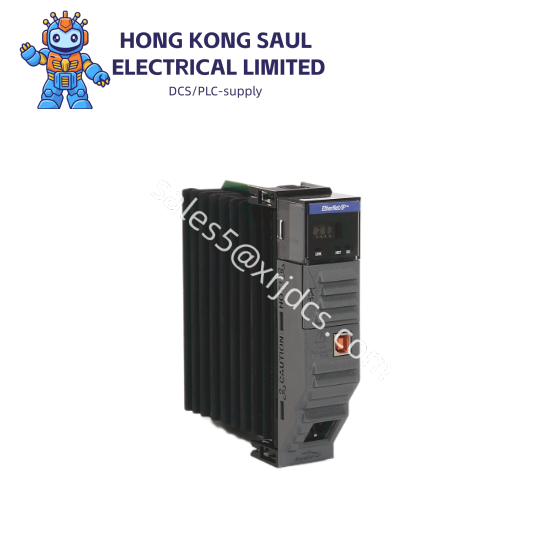

AB 1756-EN2TXT EtherNet/IP Bridge Module

AB 1756-EN2TXT EtherNet/IP Bridge Module

    The AB 1756-EN2TXT EtherNet/IP Bridge Module provides seamless integration between Allen-Bradley ControlLogix systems and other network devices using the Ethernet/IP protocol. It enables efficient data exchange and real-time communication in industrial automation environments.

Model Type:High Capacity IP Module

Model Number:1756EN2T

Manufacturer:Allen Bradley

Communication Module:ControlLogix®

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Humidity:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet, USB Port

    The AB 1756-EN2TXT EtherNet/IP Bridge Module is a critical component for modern industrial automation systems. Its robust design ensures reliable performance under challenging environmental conditions. This module supports both shielded and unshielded twisted pair cables, providing flexibility in installation and configuration. The high-speed communication capability ensures quick data transfer, which is vital for real-time monitoring and control applications. With its open-type enclosure, this module can be easily integrated into existing control systems without the need for extensive rewiring. Additionally, the module’s compact size makes it ideal for space-constrained environments. Whether you are upgrading an existing system or building a new one, the AB 1756-EN2TXT EtherNet/IP Bridge Module offers superior connectivity and performance, making it a top choice for professionals in the field of industrial automation.
