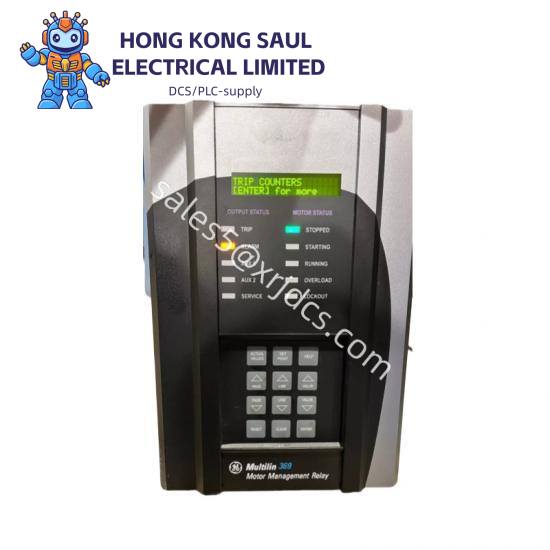

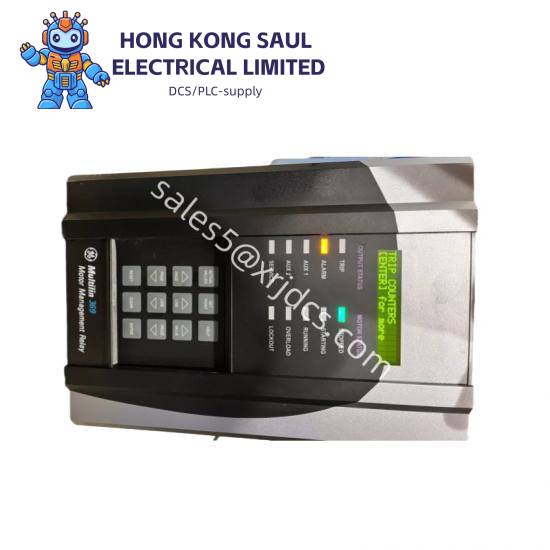

GE Multilin 369-HI-R-M-0-0-0-E Motor Management Relay
The 369-HI-R-M-0-0-0-E is an advanced motor management relay designed by GE Multilin. With its integrated metering capabilities, waveform capture, and event reporting, it optimizes motor operations and minimizes downtime through proactive maintenance.
Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:approx. 4.5 kg
# of RTD Inputs:12
Metering Capabilities:Event reports, waveform captures, data logging
The GE Multilin 369-HI-R-M-0-0-0-E is a sophisticated motor management relay that seamlessly integrates advanced monitoring and control functionalities.
With the inclusion of waveform capture, event reports, and data logging, this device provides crucial insights into motor performance, thereby enabling predictive maintenance and reducing unexpected downtimes.
The 12 RTD inputs enhance the relay’s capability to monitor temperatures accurately, ensuring optimal motor operation.
Designed with a rugged enclosure, this relay can withstand harsh industrial environments, making it a reliable choice for your motor protection needs.
Its user-friendly interface simplifies setup and operation, while its robust design guarantees longevity and minimal maintenance requirements.
