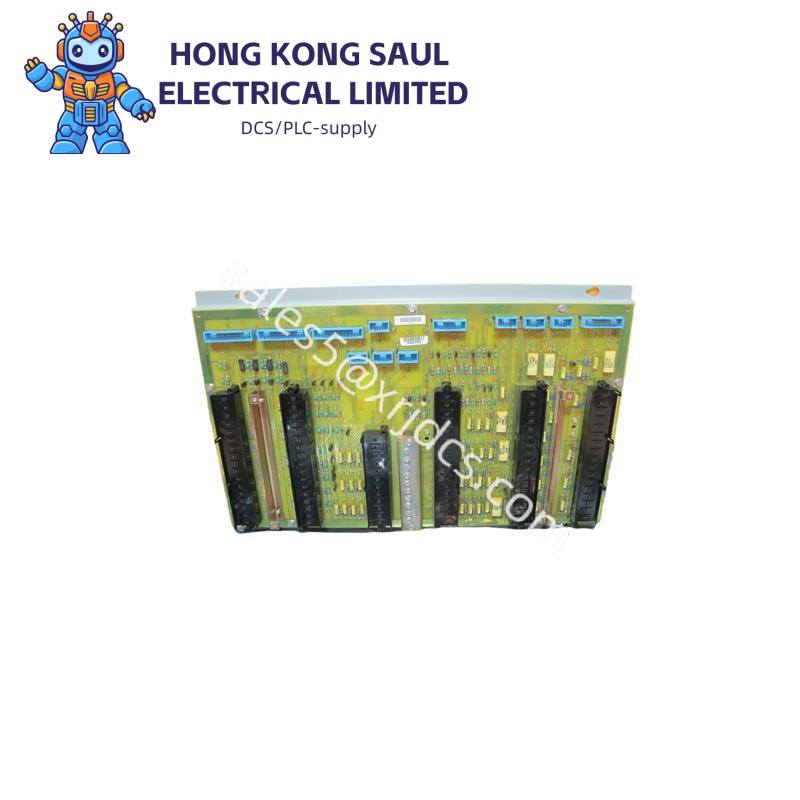

GENERAL ELECTRIC DS3820AIPA ANA 10 Module, High-Quality Industrial Control Component
The DS3820AIPA is an essential component of the Speedtronic Mark IV system from General Electric. Designed for robust industrial environments, this ANA 10 module facilitates critical control functions in power generation and industrial automation processes.
Manufacturer:General Electric
Model:DS3820AIPA
Submodel:1A1A
Category:ANA 10 Module
Compatibility:Speedtronic Mark IV
Diodes:Approximately 70 Teal Diodes
Resistors:Almost 100 Resistors
Terminal Ports:Feminine and Masculine Terminals
Coating:PCB Coating Not Specified
Screws:Several Around Perimeter
The DS3820AIPA is meticulously crafted for use in General Electric’s Speedtronic Mark IV turbine control systems. Designed to maintain high reliability and efficiency, this ANA 10 module plays a vital role in ensuring seamless operation within industrial settings.
Featuring approximately 70 teal diodes and nearly 100 resistors, the DS3820AIPA efficiently manages electrical currents, allowing energy to flow in one direction only. This design ensures the stability and durability of the module under demanding conditions.
With its robust construction, the DS3820AIPA incorporates multiple screws around the perimeter, reinforcing its physical integrity. Additionally, it includes 13 blue male terminal ports, 4 white plastic ports, and a single feminine red terminal port, facilitating easy connections and integration with other system components.
The module’s design is complemented by standard PCB coating, protecting against environmental factors and prolonging its operational life. Users can expect consistent performance and minimal downtime, even in harsh industrial environments.
For installation and safety guidelines, we recommend consulting the original manufacturer’s manual. Our team of experts at AX Control is always ready to provide assistance, ensuring you get the most out of your investment.
