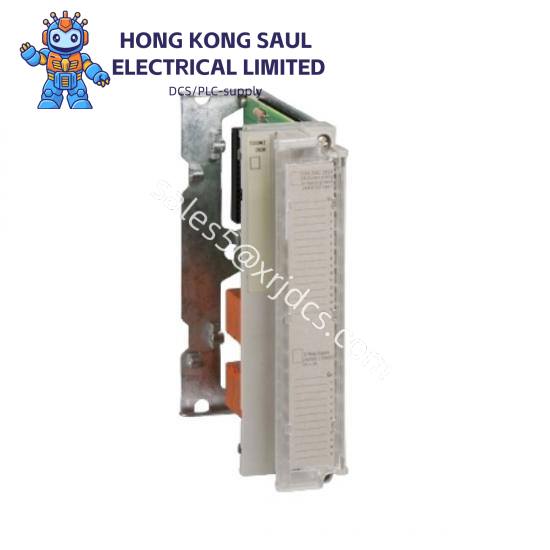

Schneider TSXDMZ28DT Discrete Solid State Input Module for Modicon TSX Micro Automation Platform
The Schneider TSXDMZ28DT Discrete Input Module is designed for applications requiring high reliability and performance within the Modicon TSX Micro automation platform. It offers 16 channels of discrete solid-state inputs with a 24V DC supply voltage, making it ideal for monitoring digital signals in industrial control systems.
Module Type:Discrete Input Module
Product ID:TSXDMZ28DT
Brand:Schneider
Compatibility:Modicon TSX Micro automation platform
Number of Channels:16
Input Voltage:24 V DC positive
Input Current:7 mA per channel
Input Connector:1 HE-10 connector
Output Voltage:Not applicable (module does not have outputs)
Current Consumption:132 mA
Power Dissipation:3.5 W by module, 0.15 W by channel
Weight:0.425 kg
The Schneider TSXDMZ28DT Input Module is engineered for high reliability and efficiency in industrial automation environments. It features sixteen 24V DC positive discrete inputs with a HE-10 connector, providing a stable and reliable source of digital information. Twelve discrete outputs are available, each capable of handling up to 0.5 mA at 24V DC through a screw terminal block. This module’s current consumption is minimized at just 132 mA, making it energy-efficient. With a total power dissipation of 3.5 W per module and 0.15 W per channel, it operates efficiently under varying load conditions. The compact design ensures easy installation and integration into existing systems, contributing to its versatility. Its robust construction guarantees long-term durability and minimal maintenance. Ideal for applications where precise control and monitoring are critical, the Schneider TSXDMZ28DT Input Module enhances system functionality and operational efficiency.
