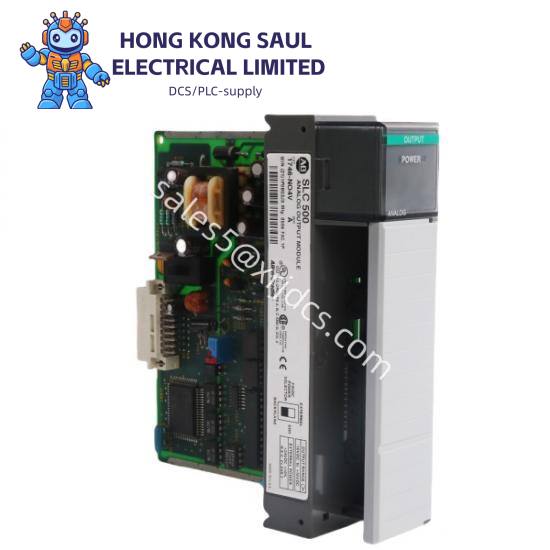

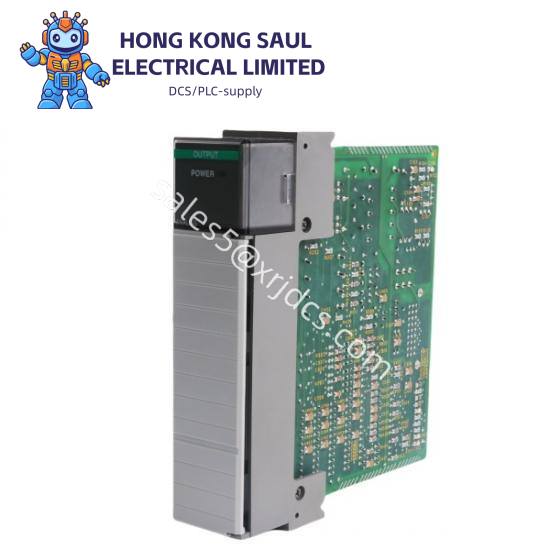

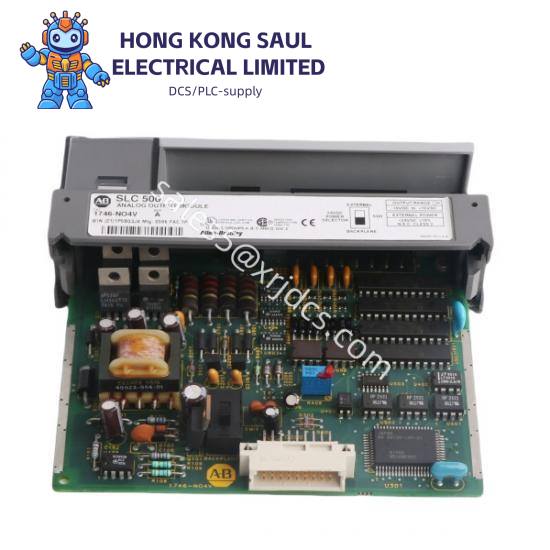

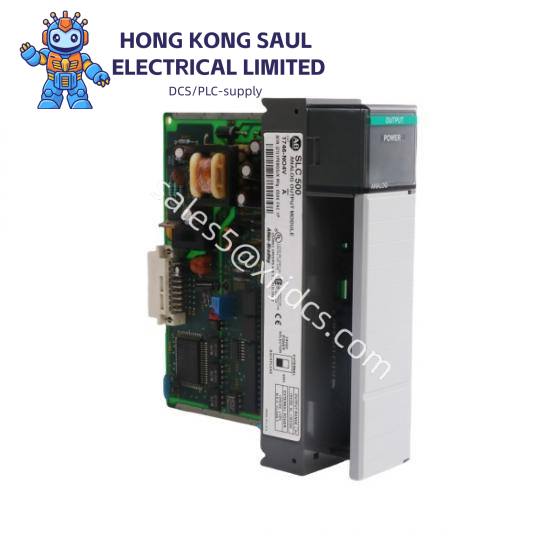

AB 1746-NO4V SLC500 High Resolution Analog Output Module
The AB 1746-NO4V is a high-resolution analog output module designed for SLC 500 systems. It provides precise control over industrial processes by delivering stable and accurate electrical signals.
Model Type:SLC500
Model Number:1746-NO4V
Manufacturer:Allen Bradley
Channels:4 (2 Input, 2 Output)
Input Range:-20 to 20 mA
Input Common Mode Voltage Range:-20 to 20 V
Input Absolute Voltage:±7.5 VDC or ±7.5 VAC RMS
Input Absolute Current:±30 mA
Output Range:-10 to 10 V
Full Scale Output:10 VDC
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 55 mA
The Allen-Bradley 1746-NO4V is a reliable and high-performance analog output module suitable for demanding industrial environments.
Designed with precision in mind, this module provides accurate voltage and current outputs, ensuring seamless integration with your existing control systems.
Key design features include its robust construction which guarantees long-term durability under harsh conditions.
It’s equipped with advanced overvoltage protection mechanisms, safeguarding your critical processes from unexpected electrical fluctuations.
With its versatile input range, the module can easily adapt to a wide array of industrial applications, making it an indispensable component for automation and process control setups.
