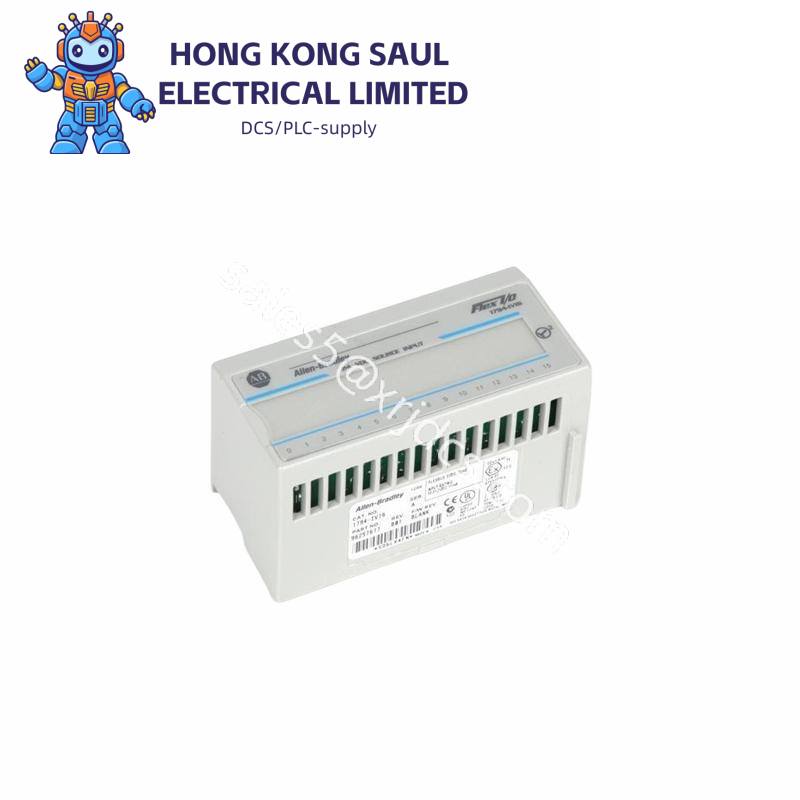

Allen Bradley 1794-IV16 Flex I/O DC Input Module, 16-Point, Sinking Type
The Allen-Bradley 1794-IV16 is a high-performance 16-channel isolated voltage input module designed for use with Allen-Bradley’s Flex I/O system. It provides reliable analog input for a wide range of industrial control applications, ensuring accurate data acquisition and enhanced process control.
Product Model:1794-IV16
Brand:Allen Bradley
Module Type:Flex I/O Analog Input Module
Number of Channels:16 Channels
Signal Range:±10V DC or ±20mA
Resolution:12-bit
Sampling Rate:Up to 250 samples/second
Power Supply:24V DC
Operating Temperature:-40°C to +85°C
Environmental Protection:IP20
Mounting:DIN Rail
The Rockwell Automation 1794-IV16 is a high-performance analog input module designed for demanding industrial environments. This module offers 16 channels of analog input, allowing for precise and reliable data acquisition. Each channel supports an input range of ±10V DC, providing a wide dynamic range for accurate measurements. With a resolution of 12-bit, the module delivers excellent precision and repeatability.
The 1794-IV16 features a sampling rate of up to 125 samples per second, making it suitable for real-time monitoring and control applications. Its high input impedance of 1 MΩ ensures minimal loading effects on connected sensors, enhancing measurement accuracy. The module operates over a wide temperature range from -40°C to +85°C, ensuring reliable performance in harsh environments.
Designed for easy installation, the 1794-IV16 can be mounted directly on a DIN rail, saving valuable space and reducing wiring complexity. The module is powered by 24V DC, making it compatible with a wide range of industrial power supplies.
This module is an essential component for any industrial control system requiring precise analog input capabilities. Its robust design, high accuracy, and ease of use make it an ideal choice for a variety of applications, including process control, data acquisition, and monitoring systems.
