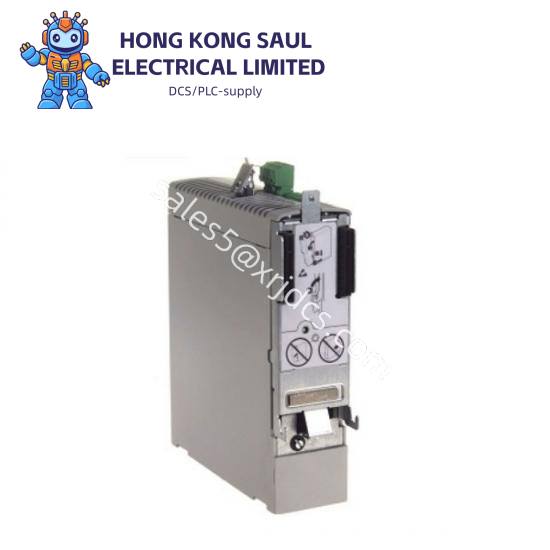

Allen-Bradley 2094-BM01-S Axis Module for Kinetix 6000 Multi-Axis Drive System

Allen-Bradley 2094-BM01-S Axis Module for Kinetix 6000 Multi-Axis Drive System

    The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for integration within the Kinetix 6000 Multi-Axis Drive Servo system. It offers robust safety features, exceptional efficiency, and versatile operation capabilities.

Brand:Allen-Bradley

Model:2094-BM01-S

Module Type:Axis Module

Input Voltage:324-528V RMS, 3-phase

Nominal Voltage:360/480V

Nominal Input Voltage:650V DC

Continuous Output Current:6.1 A

Peak Output Current:8.6 A

Continuous Output Power:3.9 kW

Efficiency:98%

Internal Shunt Peak Power:5.6 kW

Internal Shunt Continuous Power:50 W

Power Dissipation:57-126 Watts

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

PWM Frequency:8 kHz

Capacitance:150 μF

Continuous Current (RMS):6.1 A

Continuous Current (0-peak):8.6 A

Internal Shunt Resistor:115 Ω

Heat Dissipation:N/A

Weight:N/A

    The Allen-Bradley 2094-BM01-S axis module is an essential part of the Kinetix 6000 Multi-Axis Drive Servo system, meticulously engineered for superior performance in industrial settings. It features an integrated Safe Torque-Off (STO) safety functionality, ensuring that the system complies with up to Safety Integrity Level (SIL) 3 and Performance Level (PLe) standards. This module operates at a nominal voltage of 360/480V and a peak current of 8.6A, delivering a continuous output power of 3.9kW with an impressive 98% efficiency.

    Designed for reliability and durability, this axis module comes equipped with an internal shunt resistor rated at 115 ohms, contributing to its low power dissipation between 57-126 watts. Additionally, it boasts a high capacitance of 150 ?F, enabling it to handle symmetrical current ratings of up to 200,000A (rms).

    This module integrates seamlessly into the Kinetix 6000 Multi-Axis Drive Servo system, offering a straightforward installation process. Its robust construction and advanced features make it an ideal choice for enhancing the performance and safety of industrial control systems.
