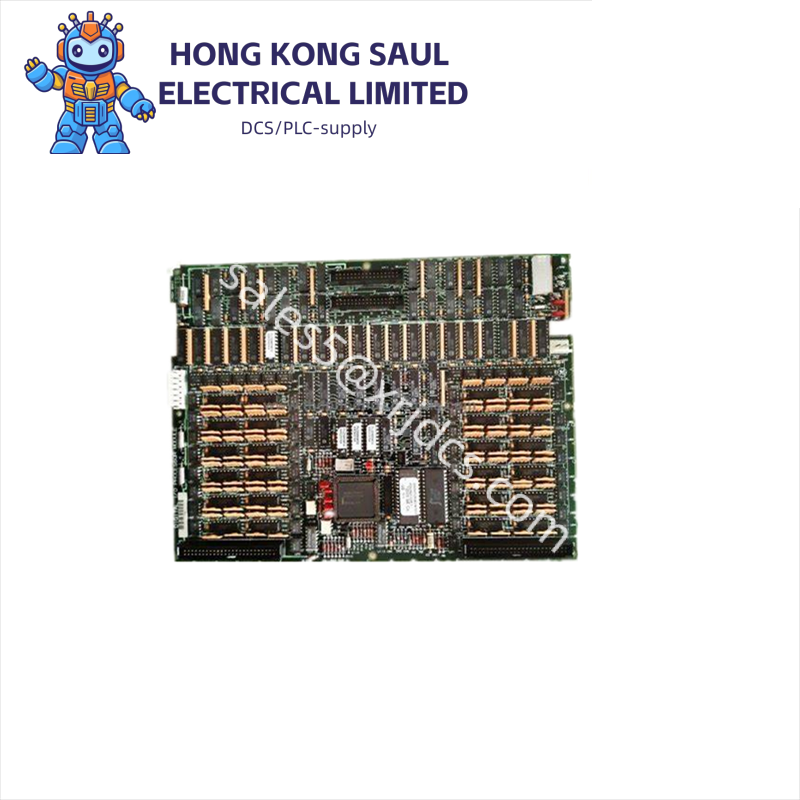

GE 531X304IBDAMG1 Base Drive Card for Industrial Control Systems
The General Electric 531X304IBDAMG1 is a high-performance base driver circuit board designed for industrial automation systems. It ensures reliable and efficient operation in control systems, enhancing performance and durability.
Brand:General Electric
Model:531X304IBDAMG1
Functionality:Base Drive Circuit Board
Compatibility:GE AC2000 System
Number of Sections:Three identical sections
Components Included:Diodes, Resistors, Capacitors, Integrated Circuits, Jumper Pins, Transistors, Metal Brackets, Crystal Oscillators, Male Terminal Connection Points
Physical Characteristics:Dimensions: Specific to product, Slots and Mounting Holes
Additional Codes:C-ESS, 006/09
The General Electric 531X304IBDAMG1 is meticulously crafted for industrial applications requiring robust and reliable performance.
This base driver circuit board consists of three identical sections, each equipped with essential components like diodes, resistors, capacitors, and integrated circuits, ensuring seamless integration into control systems.
The design includes a transformer, vertical pin header connectors, and two parallel heat sinks per section to manage thermal dissipation efficiently.
Configurable jumper switches allow customization to meet specific operational needs, making it adaptable to various environments.
Its compact and durable construction enhances its longevity and performance in demanding industrial settings.
