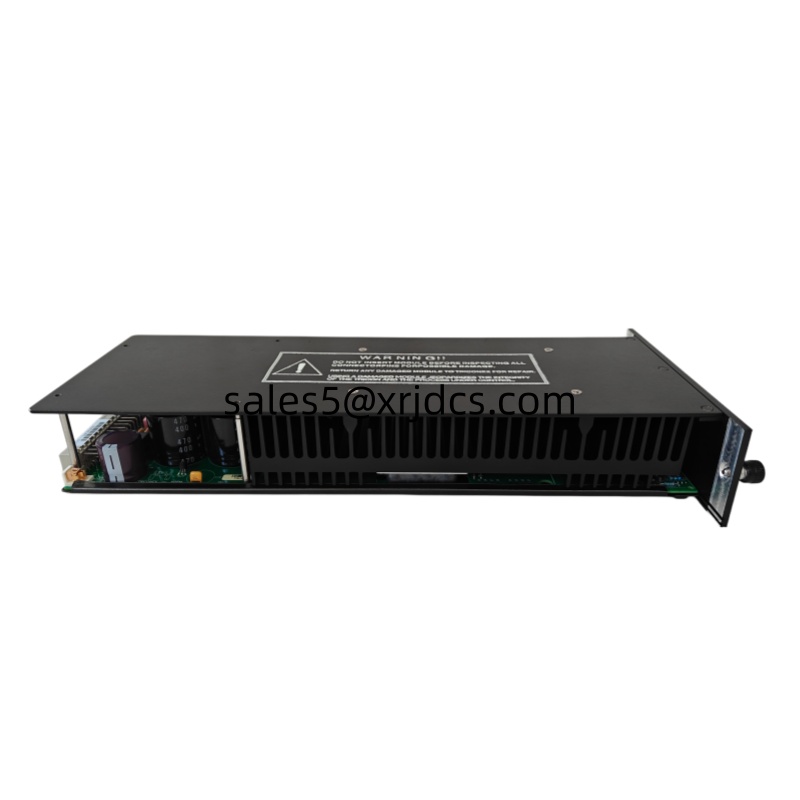

TRICONEX 8312 (1)

TRICONEX 8312 Power Supply Module: Reliable Power for Safety-Critical Systems

Meta Description: Explore the TRICONEX 8312 230 VAC power supply module delivering 175W output for Tricon safety systems. Learn specifications, applications, and reliability features for critical industrial processes.

The safety instrumented system market is projected to grow from USD 5.09 billion in 2025 to USD 7.87 billion by 2030, expanding at a CAGR of 7.3%^[1]. This growth reflects the increasing emphasis on process safety and regulatory compliance across high-risk industries. The TRICONEX 8312 power supply module plays a vital role in maintaining continuous operation of Triconex safety systems that protect critical infrastructure worldwide.

As a specialized supplier of industrial automation components, plc module provides genuine TRICONEX power supply modules including the 8312, supporting safety-critical operations across oil and gas, petrochemical, and power generation industries with reliable, certified components.

What is the TRICONEX 8312 Power Supply Module?

The TRICONEX 8312 is a high-density 230 VAC power supply module delivering 175 watts of reliable power at 6.5 VDC output for Triconex main chassis systems used in safety instrumented applications.

This power module serves as a critical component in Triconex safety systems, providing stable power to safety controllers, I/O modules, and communication interfaces. The 8312 accepts 230 VAC input voltage ranging from 185-285 VAC at 47-63 Hz, making it suitable for international installations with varying power standards. Its high-density design optimizes chassis space utilization while delivering sufficient power capacity for demanding safety applications.

The module features built-in alarm contacts that activate when power anomalies occur or when the module is missing from the chassis, enabling proactive maintenance and fault detection^[2].

Key Specifications of the TRICONEX 8312

Understanding the technical characteristics ensures proper system design and reliable operation:

The 175-watt output capacity at 60°C ambient temperature ensures adequate power headroom for fully populated chassis configurations^[3]. The tight voltage regulation of ±1% maintains stable power delivery despite input fluctuations or load variations.

Triple Modular Redundancy (TMR) Architecture Support

TRICONEX systems employ patented Triple Modular Redundancy (TMR) architecture that achieves up to SIL 3 safety integrity levels^[4]. This architecture requires reliable, redundant power supplies to maintain continuous operation during component failures.

Redundant Power Configuration

Industrial automation applications benefit significantly from redundant power supplies that ensure continuous 24 VDC operation even during individual supply failures^[5]. Triconex systems typically deploy multiple 8312 modules in redundant configurations, where:

• Each power module can independently supply the entire chassis load
• Automatic load sharing distributes power across multiple modules
• Failure of one module does not interrupt system operation
• Alarm contacts notify operators of degraded redundancy

This redundancy architecture eliminates single points of failure in the power distribution system, critical for safety applications where unplanned shutdowns create hazardous conditions or significant economic losses.

Primary Applications

Emergency shutdown systems dominated 41.30% of revenue in the safety instrumented system market in 2025^[6]. The TRICONEX 8312 supports power delivery across these critical applications:

Emergency Shutdown (ESD) Systems

ESD systems protect process facilities by automatically isolating equipment and depressurizing systems during abnormal conditions. The 8312 provides reliable power to Triconex controllers executing safety shutdown logic with deterministic response times.

Fire and Gas (F&G) Detection Systems

Fire and gas detection systems require continuous monitoring and rapid response capabilities. The 8312’s stable power delivery ensures F&G controllers maintain vigilant operation 24/7, triggering alarms and suppression systems when hazardous conditions arise.

Burner Management Systems (BMS)

Burner management systems prevent explosive conditions in fired heaters, boilers, and furnaces. The 8312 powers Triconex controllers that supervise ignition sequences, flame monitoring, and fuel valve control with fail-safe operation.

High Integrity Pressure Protection Systems (HIPPS)

HIPPS systems prevent pipeline overpressure by isolating flow sources before relief valves activate. The 8312 supplies power to ultra-fast safety controllers that execute isolation within milliseconds, protecting personnel and equipment.

Refining and Petrochemical Operations

In refineries, TRICONEX systems powered by 8312 modules protect critical units including reactors, distillation towers, catalytic crackers, and alkylation units^[7]. These environments demand absolute reliability from every system component including power supplies.

Installation and Configuration Guidelines

Proper installation ensures optimal performance and longevity:

Power Planning

Calculate total chassis power requirements by summing the consumption of all installed modules. Deploy sufficient 8312 power modules to supply this load with N+1 redundancy, where N represents the minimum number of supplies needed. For example, if the chassis requires 150 watts and each 8312 provides 175 watts, install two modules for redundant operation.

Input Power Quality

Ensure incoming AC power meets voltage and frequency specifications. Install line conditioning equipment if power quality issues exist, including voltage sag, transients, or harmonics. Dedicated circuits reduce interference from heavy inductive loads sharing the same distribution.

Mounting and Clearance

Install the 8312 in designated power supply slots within the Triconex chassis following the system manual. Maintain adequate airflow around the chassis for cooling. The 8312 operates at full rated output up to 60°C ambient temperature, but cooler environments extend component lifespan.

Alarm Contact Wiring

Connect the power module alarm contacts to monitoring systems for immediate notification of supply failures or anomalies. These normally open contacts close when faults occur, enabling integration with plant-wide alarm management systems.

Testing and Commissioning

Before energizing process equipment, verify proper power module operation:

1. Confirm input voltage within 185-285 VAC range
2. Measure output voltage at 6.5 VDC ±1% under load
3. Test redundancy by removing one module and verifying continuous operation
4. Validate alarm contact operation during simulated failures
5. Document configuration and module serial numbers

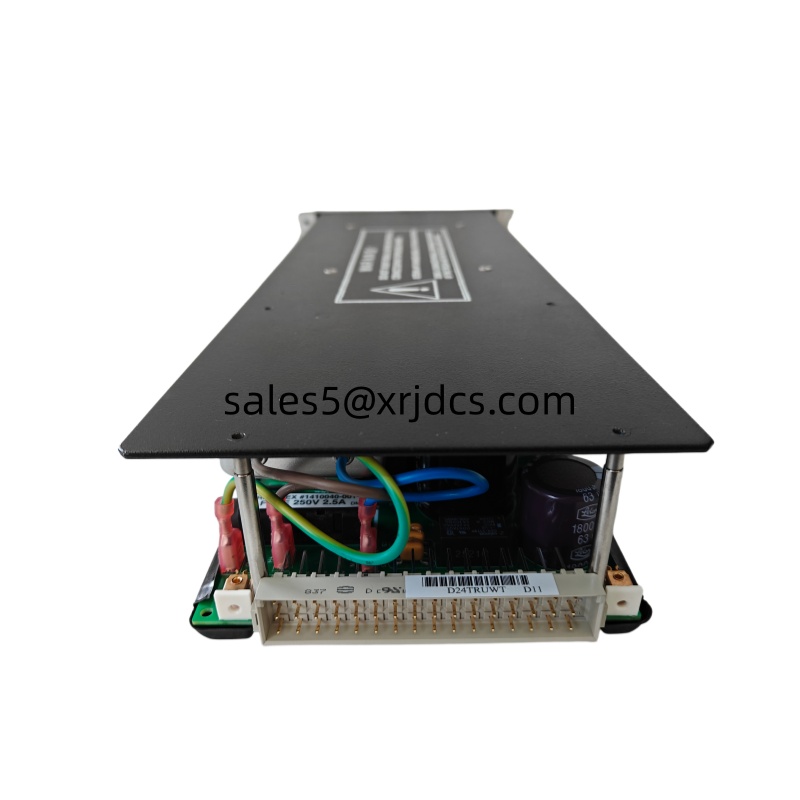

TRICONEX 8312

Maintenance and Reliability Considerations

Mean Time Between Failures (MTBF)

Industrial power supplies achieve MTBF values exceeding 100,000 hours when operated within specifications. The 8312’s robust design and conservative ratings contribute to exceptional reliability in harsh industrial environments.

Predictive Maintenance

Monitor power supply health through system diagnostics and alarm status. Replace modules exhibiting degraded performance before failures occur. Maintain spare 8312 modules for rapid replacement to restore full redundancy.

Environmental Factors

Control panel temperature significantly impacts power supply lifespan. Each 10°C reduction in operating temperature approximately doubles component life expectancy. Ensure HVAC systems maintain control room temperatures within specified limits.

Quality and Authenticity

Source TRICONEX components exclusively through authorized distributors to ensure genuine products with proper certifications. Counterfeit or refurbished modules may lack necessary safety approvals and introduce unacceptable risks in safety-critical applications. plc module supplies verified genuine TRICONEX power modules with full traceability and warranty support.

Comparison with Alternative Power Supply Models

All three models deliver identical output specifications, enabling flexible deployment based on regional power standards. The 8312’s 230 VAC input suits international installations outside North America, while the 8310 accommodates 120 VAC systems common in the United States and Canada. The 8311 serves applications with 24 VDC distribution systems.

Why Choose TRICONEX for Safety Systems?

Triconex safety systems protect some of the world’s most critical industrial processes across oil and gas, petrochemical, chemical, and power generation sectors^[8]. Several factors drive this market leadership:

Proven TMR Technology

TRICONEX pioneered Triple Modular Redundancy technology that performs continuous self-diagnostics while maintaining full operational capability during component failures. This architecture delivers industry-leading safety integrity levels with deterministic response times.

Comprehensive Certifications

TRICONEX systems hold extensive safety certifications including IEC 61508 SIL 3, TÜV certification, and compliance with industry-specific standards. These certifications provide confidence for safety engineers and regulatory approval.

Global Installed Base

Thousands of TRICONEX systems operate worldwide, creating extensive field experience and proven reliability data. This installed base validates the technology across diverse applications and operating conditions.

Long-Term Support

Schneider Electric’s commitment to TRICONEX product line ensures long-term availability of components and support services. Established supply chains and backward compatibility protect infrastructure investments.

Available Through plc module

plc module maintains inventory of genuine TRICONEX components including the 8312 power supply module for immediate delivery. With deep expertise in safety system components, plc module supports plant maintenance teams and system integrators with technical consultation, configuration assistance, and rapid fulfillment. Contact plc module at https://www.saulplconline.com for TRICONEX power supply modules and comprehensive automation component sourcing.

Frequently Asked Questions

What is the difference between the TRICONEX 8312 and 8310 power modules?

The TRICONEX 8312 accepts 230 VAC input voltage (185-285 VAC range), while the 8310 accepts 120 VAC input voltage (85-140 VAC range) or 120 VDC input (95-180 VDC range). Both modules deliver identical 175W output at 6.5 VDC, enabling deployment based on regional power standards. Select the 8312 for European, Asian, and Middle Eastern installations with 230 VAC distribution, or the 8310 for North American installations with 120 VAC systems.

How many TRICONEX 8312 modules should I install for redundancy?

Install sufficient 8312 modules to provide N+1 redundancy, where N represents the minimum number of modules required to supply your chassis power consumption. For example, if your chassis requires 150 watts total and each 8312 provides 175 watts, install two modules. This configuration allows one module to fail while the remaining module continues supplying full power. High-criticality applications may implement N+2 redundancy for additional fault tolerance.

Can I mix different TRICONEX power module types in the same chassis?

Yes, TRICONEX chassis support mixing different power module types (8310, 8311, 8312) provided each module matches the available input power. All modules deliver 6.5 VDC output and automatically share the load. However, best practice recommends using identical module types within a chassis to simplify inventory management and maintenance procedures.

Where can I purchase genuine TRICONEX 8312 power supply modules?

Purchase genuine TRICONEX 8312 modules through authorized distributors including plc module to ensure authenticity, proper certifications, and warranty coverage. Avoid unauthorized sources that may supply counterfeit or improperly stored components. plc module provides verified genuine TRICONEX products with full traceability documentation and technical support for safety-critical applications.

What is the expected lifespan of a TRICONEX 8312 power module?

TRICONEX 8312 modules typically achieve 15-20 years of service life when operated within environmental specifications and maintained properly. Factors affecting lifespan include ambient temperature, input power quality, load cycling, and duty cycle. Operating at cooler temperatures and moderate loads extends service life, while harsh environments or continuous full-load operation may reduce longevity. Monitor power module status through system diagnostics and replace modules exhibiting degraded performance.

Conclusion

The TRICONEX 8312 power supply module delivers reliable 230 VAC input power conversion for safety instrumented systems protecting critical industrial processes worldwide. Its 175-watt output capacity, tight voltage regulation, redundancy support, and proven reliability make it an essential component for emergency shutdown, fire and gas detection, burner management, and high integrity pressure protection applications.

As the safety instrumented system market expands toward USD 7.87 billion by 2030, driven by increasing safety regulations and risk mitigation priorities, proven components like the TRICONEX 8312 provide the foundation for protecting personnel, equipment, and the environment in high-consequence industries. Organizations seeking genuine TRICONEX power modules can rely on plc module for expert support, immediate availability, and complete automation component solutions.

Contact plc module today to source TRICONEX 8312 power supply modules and related safety system components for your critical infrastructure protection needs.
